View In:   ArcGIS Online Map Viewer

Name: State Section 404 Delegated Waters

Display Field: RETAINED_WATERS

Type: Feature Layer

Geometry Type: esriGeometryPolygon

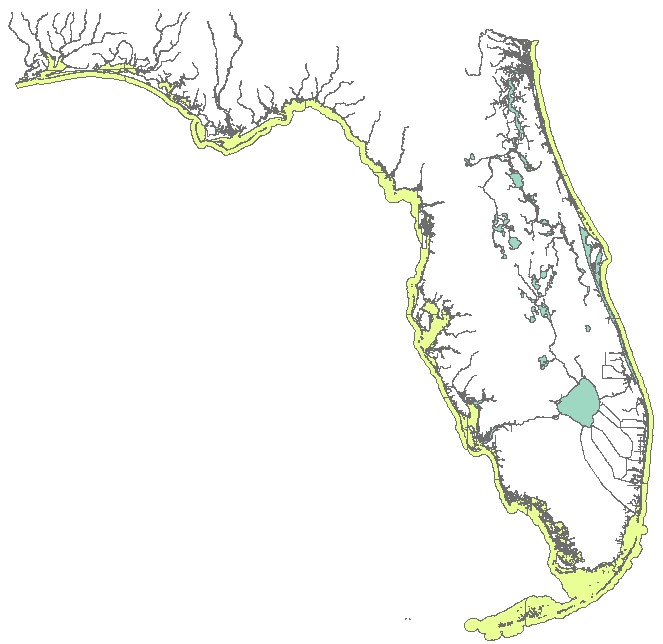

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>This a consolidation of multiple datasets that together represent the approximate extent of retained waters, with a 300-foot buffer applied to each dataset. It is divided into 2 components, Listed Retained Waters and Approximate Tidal Waters, which overlap in many areas. </SPAN></P><P><SPAN>Listed Retained Waters dataset: </SPAN></P><P><SPAN>Retained Waters List – This is a subset of lines and polygons from the </SPAN><A href="https://www.usgs.gov:443/core-science-systems/ngp/national-hydrography/national-hydrography-dataset?qt-science_support_page_related_con=0"><SPAN>USGS National Hydrography Dataset </SPAN></A><SPAN>(1:24,000) representing the waters that are named on the MOA’s Retained Waters List. </SPAN></P><P><SPAN>Approximate Tidal Waters datasets: </SPAN></P><P><A href="https://shoreline.noaa.gov:443/data/datasheets/composite.html"><SPAN>NOAA Composite Shoreline </SPAN></A><SPAN>– This layer depicts shorelines of tidal waterbodies as digitized from NOAA’s historic surveys (T-sheets) of shorelines at Mean High Water (MHW). </SPAN></P><P><A href="https://geodata.myfwc.com:443/datasets/florida-shoreline-1-to-12000-scale"><SPAN>FWC Shoreline </SPAN></A><SPAN>(1:12,000) – This layer depicts shorelines of tidal and other major waters as digitized from aerial imagery (2004 DOQQs).</SPAN></P><P><A href="https://coast.noaa.gov:443/digitalcoast/tools/slr.html"><SPAN>NOAA MHHW Inundation </SPAN></A><SPAN>(Sea Level Rise 0 foot) – This layer is a GIS analysis of tidal and elevation data to show areas that would be inundated at Mean Higher High Water (MHHW)</SPAN></P><P STYLE="margin:0 0 11 0;"><A href="https://capecoral-capegis.opendata.arcgis.com:443/datasets/canals?geometry=-82.559%2C26.535%2C-81.423%2C26.750"><SPAN>Cape Coral Canals </SPAN></A><SPAN>– This is a subset of a layer created in the 1990s by the City of Cape Coral, representing the canals that are saltwater and therefore most likely tidally influenced. This layer was used to override the MHHW layer in a few locations where control structures were mapped by the city.</SPAN></P><P><SPAN>Note that mapped shorelines may be changed by erosion, accretion, construction, and sea level rise, may be obscured by vegetation, and may not take into account the presence of water control structures, so the mapped shoreline may not be the same as the actual shoreline. The actual location of the 300 foot guideline must and shall be measured from the actual presence and location of the MHW (for tidal waters) or OHW (for non-tidal portions of the Retained Waters List) based on application drawings, site observations, or professional surveys.</SPAN></P></DIV></DIV></DIV>

Service Item Id: 2cbf130207a14e5a8445c58061e84b06

Copyright Text: Florida Department of Environmental Protection, US Army Corps of Engineers

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: -1428093.1159149203
YMin: 23903.156305737793
XMax: 990898.0510143302
YMax: 2707405.6157336533
Spatial Reference: 2881  (2881)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: RETAINED_WATERS
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: Approximate Tidal Waters (check MHWL)
  Label: Approximate Tidal Waters (check MHWL)
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [245, 245, 122, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
• Value: Listed Retained Waters
  Label: Listed Retained Waters
  Description: N/A
  Symbol:
  Style: esriSFSSolid
  Color: [158, 215, 194, 255]
  Outline:
  Style: esriSLSSolid
  Color: [110, 110, 110, 255]
  Width: 0
Transparency: 30
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: true
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: false
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: RETAINED_WATERS

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• RETAINED_WATERS ( type: esriFieldTypeString, alias: Retained Waters, editable: true, nullable: true, length: 254, defaultValue: null, modelName: RETAINED_WATERS )
• Shape__Area ( type: esriFieldTypeDouble, alias: Shape.STArea(), editable: false, nullable: true, defaultValue: null, modelName: Shape.STArea(), required: true )
• Shape__Length ( type: esriFieldTypeDouble, alias: Shape.STLength(), editable: false, nullable: true, defaultValue: null, modelName: Shape.STLength(), required: true )

Types:

ID: Approximate Tidal Waters (check MHWL)
Name: Approximate Tidal Waters (check MHWL)
Domains:
Templates:
• Name: Approximate Tidal Waters (check MHWL)
  Description:
  Prototype:
  RETAINED_WATERS: Approximate Tidal Waters (check MHWL)

  Drawing Tool: esriFeatureEditToolPolygon

---

ID: Listed Retained Waters
Name: Listed Retained Waters
Domains:
Templates:
• Name: Listed Retained Waters
  Description:
  Prototype:
  RETAINED_WATERS: Listed Retained Waters

  Drawing Tool: esriFeatureEditToolPolygon

---

Capabilities: Query,Extract

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: false

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Child Resources:   Field Groups   Contingent Values

Supported Operations:   Query   Query Analytic   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata   Update Metadata
