Name: Section/Township/Range

Display Field: SSTTRR

Type: Feature Layer

Geometry Type: esriGeometryPolygon

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>Public Land Survey System - Original data from United State Geological Survey (USGS), digitized from USGS quad maps. Modified by SFWMD, section corners and lines adjusted where COGO'd survey data was available. Township and Range polygons added as a seperate subclass.</SPAN></P><P><SPAN>To identify Section records use definition query as TRtype = 1; to identify Township Range records use definition query as TRtype = 2.</SPAN></P><P><SPAN>Most actions or operations involving water resource projects require some knowledge of the boundary locations, and other information related to the Sections.</SPAN></P></DIV></DIV></DIV>

Service Item Id: 4d18fb9846c643f29d96f59bc22c836a

Copyright Text: Geospatial Services is a unit within the South Florida Water Management District’s Information Technology Bureau (ITB). Geospatial Services manages and maintains enterprise geospatial services, products, and data and is governed by the ITB's Policies and Procedures.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 72223.819286

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 240761.48534557968
YMin: 77407.5430631563
XMax: 976856.3340190798
YMax: 1533943.3812979907
Spatial Reference: 2881  (2881)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [0, 0, 0, 0]
Outline:
Style: esriSLSSolid
Color: [152, 230, 0, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: "S/T/R = " CONCAT [SSTTRR]
Use Coded Values: true
Symbol:
Color: [52, 52, 52, 255]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 9
Font Family: Arial
Font Style: normal
Font Weight: bold
Font Decoration: none

Min. Scale: 36117.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeNone

Type ID Field: null

Fields:

• SSTTRR ( type: esriFieldTypeString, alias: SSTTRR, length: 8 )
• SECNO ( type: esriFieldTypeSmallInteger, alias: SECNO )
• TWP ( type: esriFieldTypeDouble, alias: TWP )
• RGE ( type: esriFieldTypeDouble, alias: RGE )
• GRANT_ ( type: esriFieldTypeString, alias: GRANT_, length: 30 )
• TR ( type: esriFieldTypeString, alias: TR, length: 50 )
• TRtype ( type: esriFieldTypeSmallInteger, alias: TRTYPE )
• SHAPE ( type: esriFieldTypeGeometry, alias: Shape )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• SHAPE.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )
• HIATUS_LOT ( type: esriFieldTypeString, alias: HIATUS_LOT, length: 5 )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

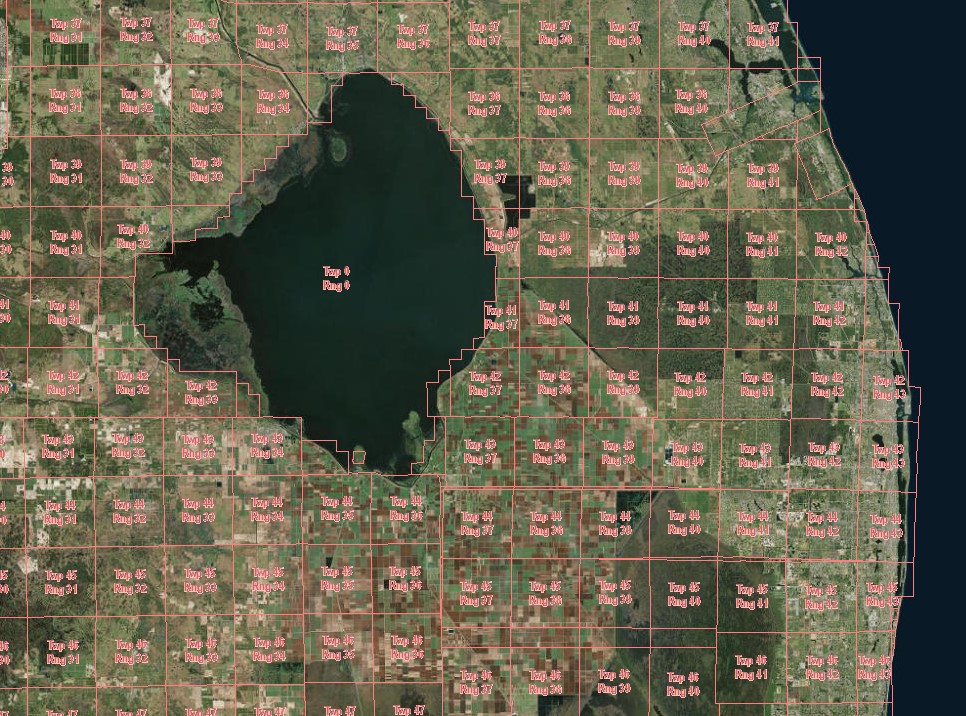

  Iteminfo   Thumbnail   Metadata
